Washing Fixture Design | Region: USA

Industry: Automotive


  • Leading Transmission & Drive manufacturer in the United States.


  • Design and Development of Wash fixtures for the transmission & Drive parts.

Business Challenge

  • Scope of this project is to design one wash fixture for the 10 parts.
  • We have to develop wash fixture according to their washing room dimensions and their designing considerations with respective parts.
  • They were given us quantity need to be washed at same time for the different parts.
  • Bigger challenges are there, Different wash fixtures were present for individual part, but we need to develop one wash fixture for the all the parts according considering their quantity.
  • While developing this wash fixture we should consider customer’s washing centre features, Placement of nozzle and Bed maximum dimensions.
  • Coordinate with client and make changes accordingly.
  • Strict dead line to meet.


Milestone Solution


  • Concept development for Mechanical Design
  • 3D CAD development and concept, Design review & Modification.
  • We give customer idea for the batch washing. According to customer database we create combinations for the wash.

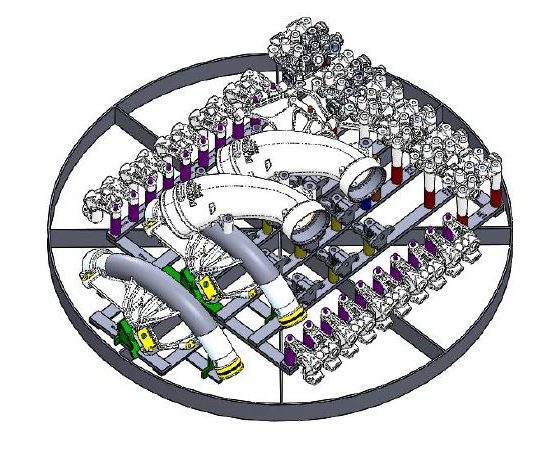

  • According to finalize concept we delivered 3D model and Detailed drawings.
  • Manufacturing support.


  • According to our concept customer can easily wash their different parts on single fixture.
  • With our idea customer can easily use combinations for the washing if required.
  • Unique color codes for loading correct parts at correct location.
  • 50% Less Storage due to single fixture.
  • 40% Reduction in cycle Time
